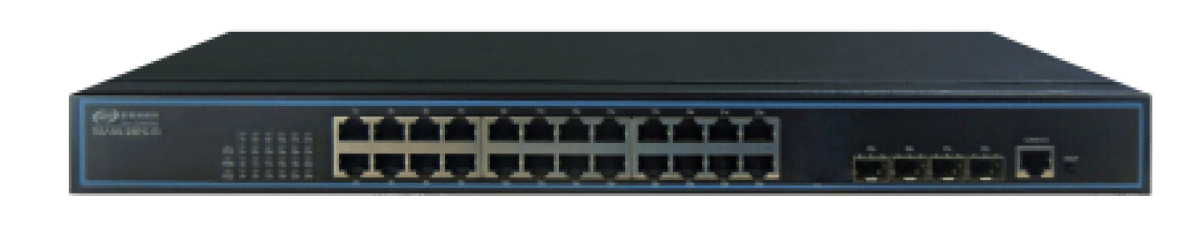

Комутатор керований L2 GCOM S5300-28PC

 Backplane capacity

100Gbps

 Forwarding Capacity

41.7Mpps

 Memory and Storage

128MB SDRAM memory and 4MB flash

 Power Consumption

Full-loaded≤37W (without POE)

Idle≤16W

 Dimensions (Width x Depth x Height)

440mm*44mm*360mm

 Weight (Full-Loaded)

≤5kg

 Environmental Requirements

Working temperature：-15°C～55°C

Storage temperature：-40°C～70°C

Relative humidity：10%～90%，non-condensing

 L2 Features

 MAC

16K MAC address
MAC Black Hole
Port MAC Limit

 VLAN

4K VLAN entries
Port based QinQ
PVLAN to realize port isolation and saving public-vlan resources
GVRP

 Spanning Tree

STP/RSTP/MSTP

Remote loop detecting

 Port

Bidirectional bandwidth control, configure entry/exit and the smallest 64K
control particle
Static and LACP
Port- mirroring of 1:1 or N:1

 Security Feature

 User’s Security

ARP anti-Flooding, configure ARP traffic safety threshold and inhibition
ARP packet
ARP anti-Spoofing, configure ARP inner and outer MAC check and static
ARP checklist and drop / flood action
IP+MAC+port+VLAN binding manually
Port Isolation, configure hardware isolation of each port 文
Bind MAC address to port and MAC address filtration on port
IEEE 802.1x and AAA/Radius authentication

 Device Security

Anti-DOS attack
SSHv2 Secure Shell
SNMP v3 encryption
Telnet based on Security IP
Prevent unauthorized user

 Network Maintenance

One button binding based on dynamic ARP table
Manual binding parameter of IP 、VLAN ID、MAC and port etc.
L2-L7 ACL flow filtration
Auto-shutdown port in storm
Update user’s location through DHCP Option82 and PPP

 Service Features

 ACL

Activate standard and extended ACL
Time Range ACL strategy
Flow classification based on SMAC、DMAC、VLAN、SIP、DIP、IP
IP(IPv4/IPv6) 、TCP/UDP port num、 protocol type etc.
Packet filtration of L2～L7 IP header with 80bytes

 QoS

Rate-limit to packet sending/receiving speed of port or self-defined flow
and provide general flow monitor and two-speed tri-color monitor of
self-defined flow
Packet mirror and redirection of interface and self-defined flow Supports
Priority remark to port or self-defined flow and provide 802.1P, DSCP
priority and Remark
Super queue scheduler based on port and self-defined flow. Each port/
flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR

 Multicast

IGMPv1/v2/v3 Snooping
IGMP Filter
MVR multicast VLAN register and cross VLAN multicast replication
IGMP Fast leave
IGMP Proxy

 Reliability

 Loop Protection

EAPS and GERP
Loopback-detection

 Link Protection

FlexLink
RSTP/MSTP
LACP

 Device Protection

Backup of host program and configuration files

 Maintenance

 Network Maintenance

Port real-time, utilization and transmit/receive statistic based on CLI
Port real-time, utilization and transmit/receive statistic based on CLI
802.3ah Ethernet OAM
Syslog and RFC 3164 BSD syslog Protocol
Ping and Traceroute

 Device Management

CLI, Console port, Telnet and WEB
SNMPv1/v2/v3
RMON (Remote Monitoring)1,2,3,9 group MIB
NTP
GN.LinkⅡ Server
NGBNView network management
