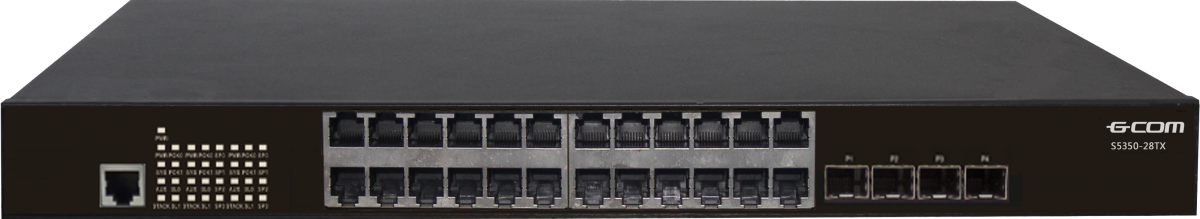

Комутатор керований L2+ GCOM S5350-28TX

Switching Capacity

128Gbps

Forwarding Capacity

95Mpps

Memory and Storage

512MB SDRAM and 16MB flash memory

Power Supply

AC: input 90～264V, 47～67Hz;

Power Consumption

Full-load consumption ≤40W

Idle-power consumption≤13W

Dimensions (Width x Depth x Height)

440mm*220mm*44mm

Weight (Full-Loaded)

≤3kg

Environmental Requirements

                Working temperature: -10°C～50°C

Storage temperature: -40°C～70°C

         Relative humidity: 10%～90%, non-condensing

L2 Features

MAC

16K MAC

Aging time and add/remove static MAC

Port MAC Limit

Disable MAC address learning on port or channel-group

MAC address filtering

Port MAC limit

VLAN

4K VLAN 802.1Q

Port-based and MAC-based VLAN

Q-IN-Q

Spanning Tree

STP/RSTP/MSTP

Remote loop detecting

Port

Bi-directional bandwidth control

Static link aggregation and LACP(Link Aggregation Control Protocol)

Port mirroring

Security

Features

Ipv4

DHCP Relay

DHCP Server

Static ARP

L3 forwarding specification to be 1024

Static route

512 LPM (default router )

IP routing

User’s Security

Anti-ARP-spoofing

Anti-ARP-flooding

IP Source Guard create IP+VLAN+MAC+Port binding

Port Isolation

MAC address binding to the port and MAC address filtering

IEEE 802.1x and AAA/Radius authentication

Device Security

Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack), ARP

detection, worm and Msblaster worm attack

SSHv2 Secure Shell

SNMP v3 encrypted management

Security IP login through Telnet

Hierarchical management and password protection of users

Network Maintenance

Dynamic ARP table-based binding

IP+VLAN+MAC+Port binding

L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet

Port-based broadcast/multicast suppression and auto-shutdown risk port

DHCP Option82 and PPPoE+ upload user’s physical location

Service Features

ACL

Standard 1 K and extended ACL

Time Range ACL

Flow classification and flow definition based on source/destination MAC address、VLAN、802.1p、ToS、DiffServ、source/destination IP(IPv4/IPv6) address、TCP/UDP port number、protocol type, etc

packet filtration of L2～L7 deep to 80 bytes of IP packet head

ACL flexible control in the phases of vlan-lookup、ingress、egress

QoS

Rate-limit to packet sending/receiving speed of port or self-defined flow

Packet mirror and redirection of interface and self-defined flow

Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark

Super queue scheduler based on port or self-defined flow. Each port flow supports 8 priority queues and scheduler of SP, WRR,

SP+WRR, etc.

Multicast

IGMPv1/v2/v3 Snooping

IGMP Filter

MVR and cross VLAN multicast copy

IGMP Fast leave

IGMP Proxy

L3 multicast to be 256

Reliability

Loop Protection

EAPS\ERPS\PVST and GERP (recover-time <50ms)

Loopback-detection

Link Protection

FlexLink (recover-time <50ms)

RSTP/MSTP (recover-time <1s)

LACP (recover-time <10ms)

Device Protection

Double fault-tolerant backup of host program and configuration files

Maintenance

Network Maintenance

Port real-time, utilization and transmit/receive statistic based on Telnet

LLDP

802.3ah Ethernet OAM

RFC 3164 BSD syslog Protocol

Ping and Traceroute

Device Management

CLI, Console port, Telnet and WEB

Stack

OAM（802.3ah and 802.1ag）

VCT

User hierarchical permission

RADIUS

SNMPv1/v2/v3
